Cone crushers are integral in the mining industry due to their high efficiency, precise particle size control, and adaptability to various ores, making them essential equipment for ore processing and mining operations. Usually, the structure of cone crusher is as following:

Main Frame Structure: The main structure includes the frame, base, transmission shaft, and an adjustable discharge outlet, forming the overall framework of the crusher.

Crushing Chamber: The crushing chamber is the area where materials are placed for crushing, featuring a crushing wall that can be adjusted to accommodate the crushing requirements of different materials.

Transmission Device: The transmission device consists of a motor, transmission shaft, gears, and a belt transmission system, transferring power from the motor to the main shaft of the crusher.

Adjustment Device: Used to adjust the width of the discharge outlet, enabling precise control of the final particle size.

Protection Devices: Various protective devices, such as iron-pass protection, are implemented to prevent non-crushable materials from entering the crushing chamber and causing damage.

Based on these structure, cone crusher has the following characteristics:

High Efficiency: Cone crushers utilize a cone-shaped crushing chamber design, providing higher crushing efficiency.

Adjustable Particle Size: Precise adjustment of the final particle size is achieved by adjusting the crushing wall and discharge outlet width of the crushing chamber.

Strong Adaptability: Suitable for various hardness levels and types of ores, including materials with medium hardness and brittleness.

Ease of Maintenance: With a relatively simple structure, cone crushers are convenient for inspection and maintenance.

High Stability: The robust frame and transmission system contribute to the high stability of cone crushers, resulting in minimal vibrations during operation.

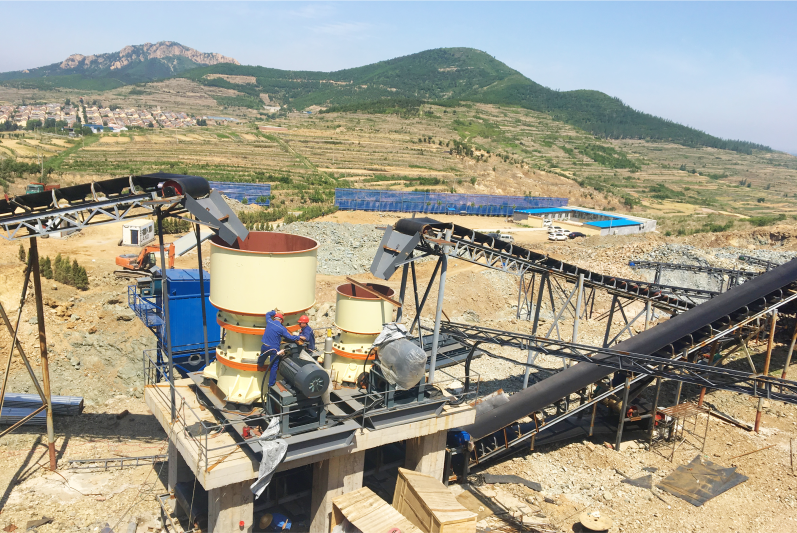

Because of these cone crusher’s structure and features make it an ideal secondary crusher in mining and aggregates, especially for hard stone, Sandmine cone crushers are with good performance based on Sandmine powerful machining and rich operation experience, hope to provide you suitable solution too.
